HLS-L LED SPOTLIGHTS

3W

HLS-L LED SPOTLIGHTS 3W, Black Reflector

Features

  • High luminous efficacy COB LED from Citizen
  • Flicker-free LED driver
  • Tilt-able to adjust direction of light beam
  • Low temperature rise
  • LED with 50K hours life at L70
  • Options for CRI higher than 80 and 90
  • System efficacy up to 100 lm/W
  • Suitable for emergency lighting kit
  • Anode oxide aluminum body
  • Complies with RoHS directive
  • Option for 1-10V dimmable driver

Characteristics

Driver supply voltage 220-240 VAC ±10%
Circuit power 4W
LED supply voltage 37.5V DC
LED supply current 90mA
Ambient temperature (ta) -10 … +50°C
Power factor 95%
THD <15%
Ceiling cut-out 75mm
Trim diameter 85mm
CRI >80, >90
Beam angle 15/24/36°
Ingress protection IP20
Lumen maintenance (L70) >50K Hrs

Data tested with standard LED Driver

%

Power Factor

%

THD

Years Warranty

Hours of LED Life

Lumen / Watt

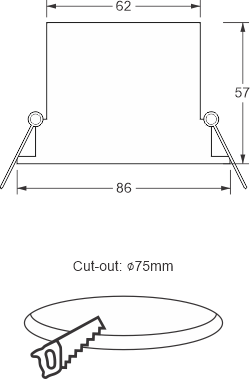

Dimensions

LED Chips

The Citizen LEDs are characterised by very high efficacy and colour rendering index and durability. Options for Ra 90 (min.) and Ra 97 (typical) are available.

The chromaticity range is narrower and within MacAdam 3-step ellipse from the chromaticity centers (ANSI CCT standard).

They are IES lM-80-2008 (Measuring Lumen Maintenance of LED Light Sources) certified for the best reliability and performance.

LED Drivers

  • HLT Flicker-Free Drivers are flicker-free constant current driver for non-dimming applications. The drivers are characterised by very high reliability and performance.
  • For dimming applications, HLT 1-10 V Dimming Drivers can be selected. The drivers support industrial standard 1-10V dimming interface.
  • To have emergency lighting function,  HEL emergency lighting units are used for both AC and DC battery supplies. Five steps dimming is provided via the infrared remote controller. DMX-512 dimming driver is also available for the downlight.

Compliances

EN 61347-2-1 Lamp control-gear. Particular requirements for starting devices (other than glow starters)

EN 61347-2-13 Lamp control gear - Part 2-3: Part 2-13: Particular requirements for d.c. or a.c. supplied electronic controlgear
for LED modules

EN 62384 DC or AC supplied electronic control gear for LED modules. Performance requirements

EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

EN 61000-3-2 Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)

EN 61000-3-3 Electromagnetic compatibility (EMC) – Part 3-3: Limits – Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

EN 61547 Equipment for general lighting purposes. EMC immunity requirements

Ordering Information

Model CCT (K) CRI Beam Angle (°) Lumen (lm) Efficacy (lm/W) LED Driver
HLS-LB3-15-827F 2700 >80 15   100 HLT-90-42F
HLS-LB3-15-830F 3000 >80 15   100 HLT-90-42F
HLS-LB3-15-840F 4000 >80 15   100 HLT-90-42F
HLS-LB3-15-865F 6500 >80 15   100 HLT-90-42F
HLS-LB3-15-927F 2700 >90 15   100 HLT-90-42F
HLS-LB3-15-930F 3000 >90 15   100 HLT-90-42F
HLS-LB3-15-940F 4000 >90 15   100 HLT-90-42F
HLS-LB3-15-965F 6500 >90 15   100 HLT-90-42F
HLS-LB3-24-827F 2700 >80 24   100 HLT-90-42F
HLS-LB3-24-830F 3000 >80 24   100 HLT-90-42F
HLS-LB3-24-840F 4000 >80 24   100 HLT-90-42F
HLS-LB3-24-865F 6500 >80 24   100 HLT-90-42F
HLS-LB3-24-927F 2700 >90 24   100 HLT-90-42F
HLS-LB3-24-930F 3000 >90 24   100 HLT-90-42F
HLS-LB3-24-940F 4000 >90 24   100 HLT-90-42F
HLS-LB3-24-965F 6500 >90 24   100 HLT-90-42F
HLS-LB3-36-827F 2700 >80 36   100 HLT-90-42F
HLS-LB3-36-830F 3000 >80 36   100 HLT-90-42F
HLS-LB3-36-840F 4000 >80 36   100 HLT-90-42F
HLS-LB3-36-865F 6500 >80 36   100 HLT-90-42F
HLS-LB3-36-927F 2700 >90 36   100 HLT-90-42F
HLS-LB3-36-930F 3000 >90 36   100 HLT-90-42F
HLS-LB3-36-940F 4000 >90 36   100 HLT-90-42F
HLS-LB3-36-965F 6500 >90 36   100 HLT-90-42F

👉 Flicker-Free LED Driver



Model CCT (K) CRI Lumen (lm) Efficacy (lm/W) LED Driver
HLD-V614W-827A 2700 >80 1280 80 HLT-400-42A
HLD-V614W-830A 3000 >80 1280 80 HLT-400-42A
HLD-V614W-840A 4000 >80 1410 88 HLT-400-42A
HLD-V614W-865A 6500 >80 1410 88 HLT-400-42A
HLD-V614W-927A 2700 >90 1280 80 HLT-400-42A
HLD-V614W-930A 3000 >90 1280 80 HLT-400-42A
HLD-V614W-940A 4000 >90 1410 88 HLT-400-42A
HLD-V614W-965A 6500 >90 1410 88 HLT-400-42A

👉 1-10V Diming LED Driver



Model CCT (K) CRI Lumen (lm) Efficacy (lm/W) LED Driver
HLD-V614W-827E※ 2700 >80 1280 80 HEL-400-42
HLD-V614W-830E※ 3000 >80 1280 80 HEL-400-42
HLD-V614W-840E※ 4000 >80 1410 88 HEL-400-42
HLD-V614W-865E※ 6500 >80 1410 88 HEL-400-42
HLD-V614W-927E※ 2700 >90 1280 80 HEL-400-42
HLD-V614W-930E※ 3000 >90 1280 80 HEL-400-42
HLD-V614W-940E※ 4000 >90 1410 88 HEL-400-42
HLD-V614W-965E※ 6500 >90 1410 88 HEL-400-42

※ Use suffix “2” or “3” for 2-hr or 3-hr emergency lighting option

👉 HEL Series LED Emergency Lighting Units
