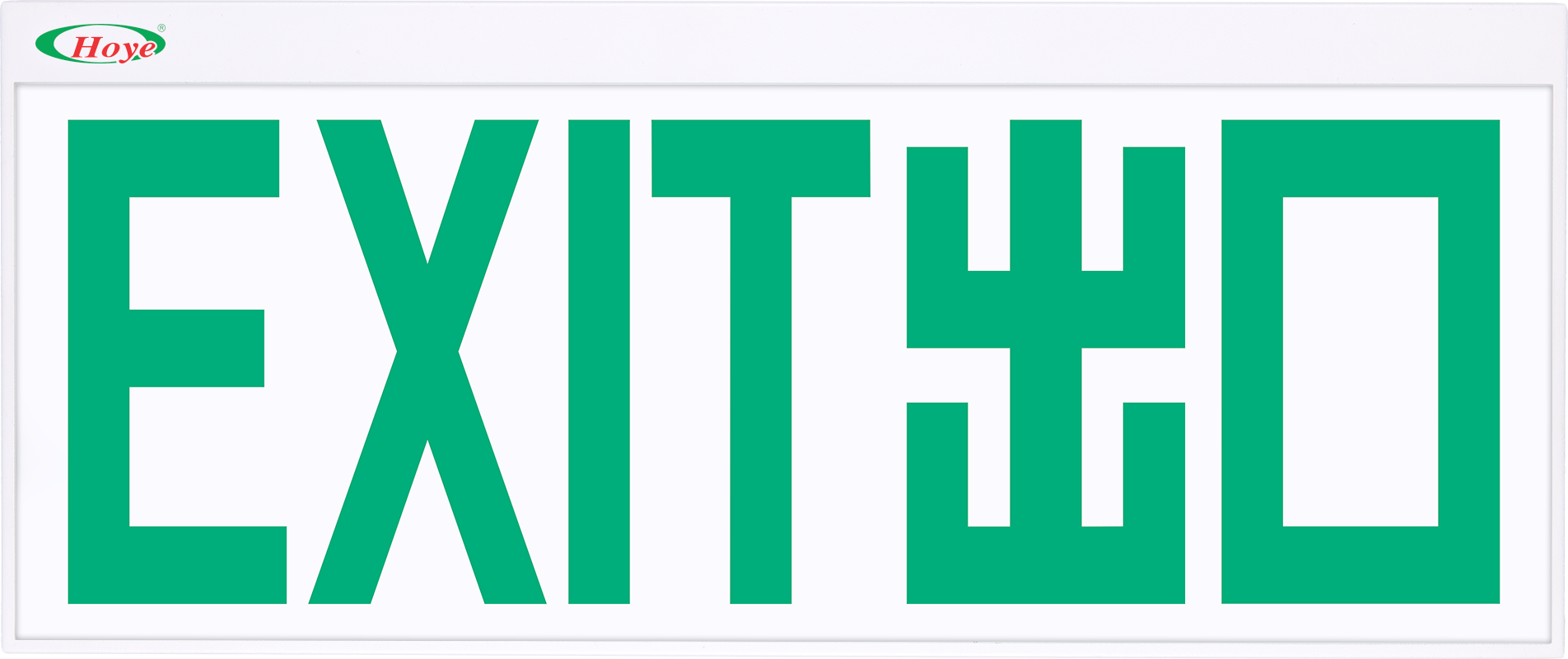

HXS Slim Series – 400mm LED Exit Sign

IEC-62034 Automatic Test

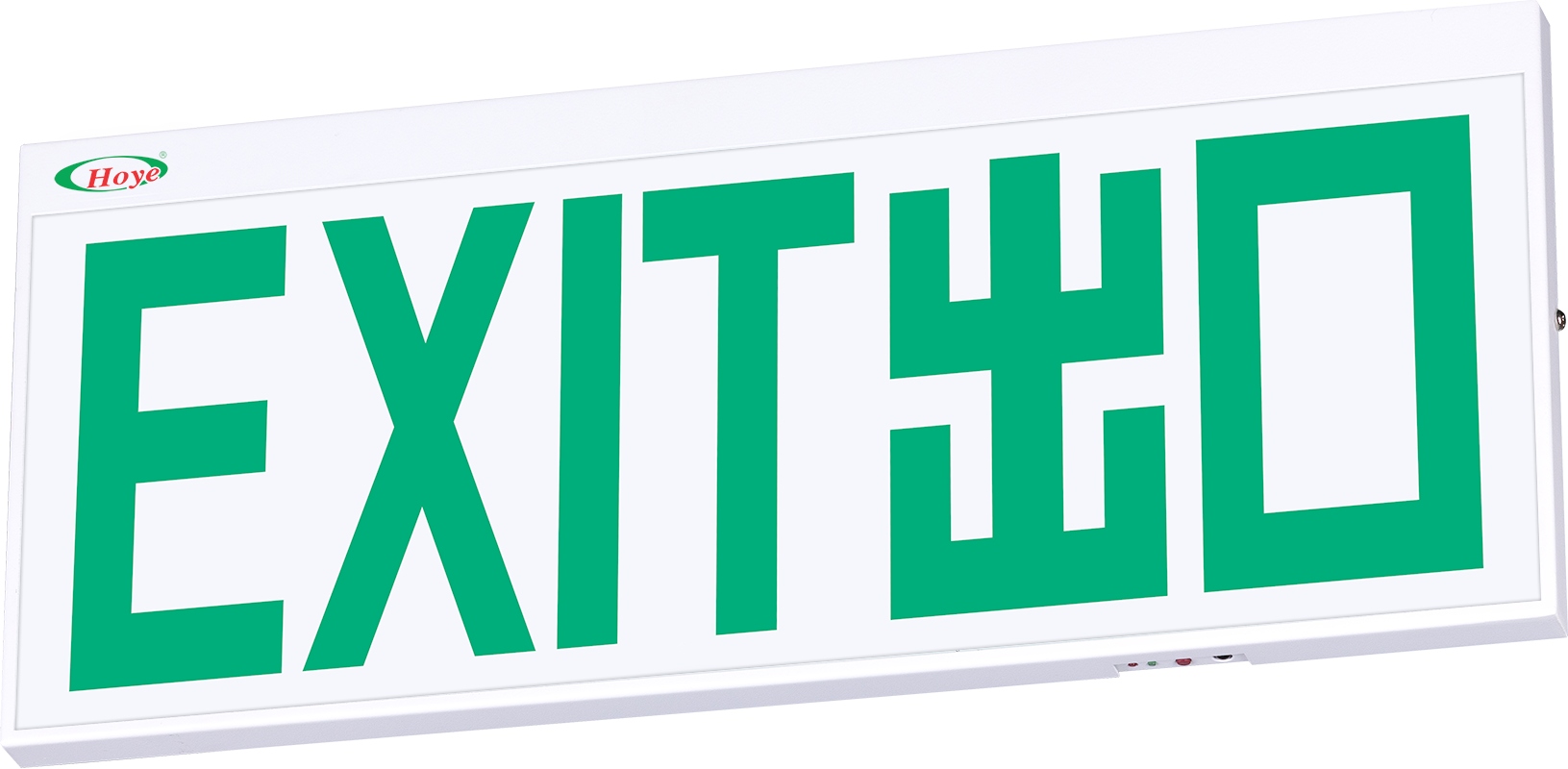

Ultra slim low profile

  • Thinnest bezel, just 4mm width

  • Ultra thin, 18mm with gear & rechargeable battery

  • No gear box is required

  • IEC 62034 automatic test system

  • Infra-red remote control

  • Dual LED for system status indication

Features

  • IEC 62034 automatic test system for HK FSD requirements in 2021
  • Slim design with 4mm bezel and 18mm thickness
  • Nichia LEDs with 150K hours life at L70
  • System power is only 2W
  • Full solid-state design without mechanical part
  • Constant brightness control for both AC and DC operations
  • Support lamp flashing with fire alarm input
  • Deep-discharge shutdown for battery protection
  • Isolated low voltage test switch
  • 3 charging modes: 6-hour charging, pulse charging, battery recovery charging
  • Infrared remote control for self-test and system set up

Electrical Characteristics

Rated supply voltage 220-240 VAC (-20%, +10%)
Supply frequency 50-60 Hz
Circuit power 2.0W max
Changeover time <0.1 sec
Recharge time <6 hrs
Rated discharge time  3 hrs
Lumen Maintenance (L70) >150K Hrs
Ambient temperature (ta) 0 ... +50°C
Max. temperature rise (Δt) <5°C
Battery type NiCd, NiMH
Luminance 250 cd/㎡ max

IEC 62034 Automatic Test

According to HK FSD, Technical Guidance May 2021 and FSD Circular Letter No. 5/2021, PPA/104(A), 5th Revision, emergency lighting with self-contained batteries shall be inspected periodically. For automatic testing devices, it shall be designed in accordance with IEC 62034:2012 - Automatic test systems for battery powered emergency escape lighting.

Our test system will start automatically after mains supply is not interrupted for 5 days. After a random delay days for different device,  a commissioning test is started. This avoids adjacent devices testings at the same time. Monthly functional tests and annually duration test will then be repeated.

The firmware supports full IEC 62034 - ATS Type S, including the following tasks:

IEC 62034

IEC 62034/BS EN 50172/FSD Requirements Automatic Test
Commissioning Testing
Maintenance

a. Once every month a functional test in accordance with BS EN 50172 not longer than 10% of rated duration should be carried out.


60 sec

b. Once every twelve months a full rated duration test, should be carried out and the results should be entered in a register.

c. The luminaire should be functioning properly to maintain the stipulated lighting level and the normal power supply should be restored after the test.

d. If automatic testing devices are used, the above item a – c should be complied with.



Functional and Duration Tests

Functional and duration tests are two types of tests performed to ensure exit sign functionality and reliability.

  • Functional test is performed once a month to check the basic functionality. The test also checks the hardware parameters, such as various voltage and current. The test duration is 60 seconds.
  • Duration tests are performed once a year. The tests is the same as functional test but with additional battery life check with a full rated battery discharge.
  • Commissioning test are the first duration tests. They are typically performed after the device has been installed and configured.



Test Performed Functional
Test
Duration
Test

1. System Changeover

2. Lamp voltage

3. Lamp current

4. RTC battery voltage

5. Battery charging voltage

6. Battery charging current

7. Battery discharging voltage

8. Battery discharge time



Automatic Test Flowchart

ARM 32-bit Processor

The core of the system is controlled by an ARM 32-bit processor, which is more powerful and faster than previous generations.

System parameters, such as current and voltage from battery, charger and lamp, are sampled several thousand times per second. This provides fast and accurate response for system operations, fault monitoring and automatic test system.

Years Warranty

Hours of LED Life

Watt

LED Chips

The series incorporates best of best Nichia LEDs from Japan. The LEDs have the longest LED life and the best performance in the industry. They are IES lM-80-2008 (Measuring Lumen Maintenance of LED Light Sources) certified for the best reliability and performance. For eye safety, the LEDs are also IEC 62471:2008 (Photobiological Safety of Lamps and Lamp Systems) certificated.

IR Remote Control

The infrared remote control makes maintenance easier than ever. It can be used to set the LED exit sign system settings and self-test functions.

  • Panel brightness dimming control in normal operation
  • Flashing model in emergency mode
  • System changeover test (simulate traditional test button)
  • On-demand self-test

Status Indications

Two LED indicators provide a rich set of status indications for system status and faults. Operators can use the information to quickly identify and diagnose problems.

green-led-on-off

Normal Status

  • Charging
  • Battery charged
  • Functional test pending
  • Duration test pending

red-led-on-off

Fault Status

  • Battery fault
  • Lamp fault
  • Charger fault

Compliances

FSD Circular Letter No. 5/2021 Fire Safety Requirements for Emergency Lighting Systems in Licensed/Registered Premises

IEC 62034:2012 Automatic test systems for battery powered emergency escape lighting

BS 5266-1:2016 Emergency lighting – Code of practice for the emergency lighting of premises

BS EN 1838:2013 Lighting applications. Emergency lighting

EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules

EN 62384 DC or AC supplied electronic control gear for LED modules. Performance requirements

EN 60598-1 Luminaires. General requirements and tests

EN 60598-2-22 Luminaires. Particular requirements. Luminaires for emergency lighting

EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

EN 61000-3-2 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)

EN 61000-3-3 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

EN 61547 Equipment for general lighting purposes. EMC immunity requirements

Dimensions

LED Exit Sign, HXL-S 400mm Dimensions

Emergency Exit Legends

Ordering Information

Model Width (mm) Legend Illuminated Side
HXS-W4SJ 400 J Single
HXS-W4SK 400 K Single
HXS-W4SL 400 L Single
HXS-W4SM 400 M Single
HXS-W4SN 400 N Single
HXS-W4SO 400 O Single
