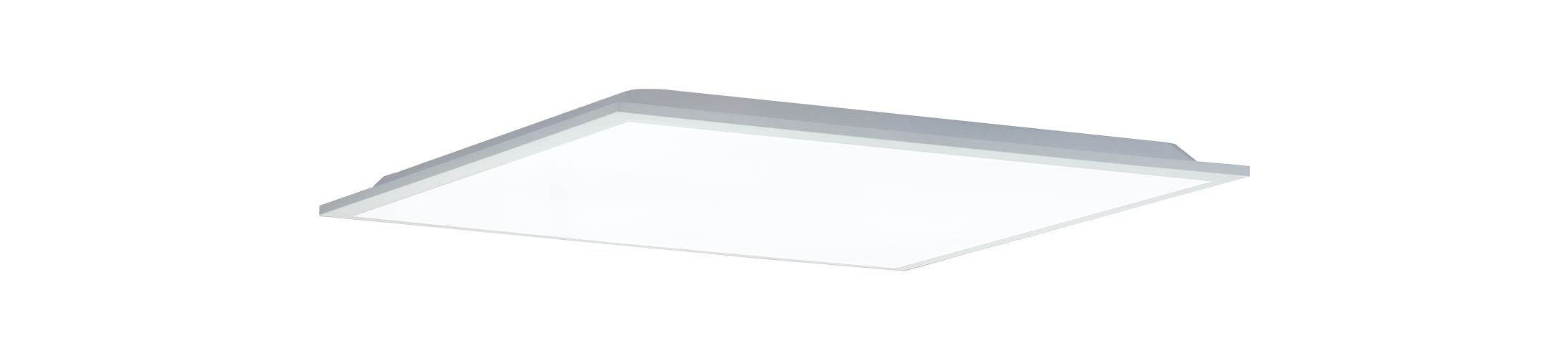

FLICKER-FREE LED FLAT PANELS
HLP SERIES
Features
- Nichia LEDs, up to 10-year life at L70
- Flicker-free drivers to protect your eyes
- Energy savings
- Low profile type for only 30mm
- System efficacy up to 100lm/w
- High CRI
- Optional 1-10V dimming interface
- LED transformers are replaceable
- Options for 2-hour or 3-hour emergency lighting kits
Electrical Characteristics
| Rated supply voltage | 220-240 VAC ±10% |
| Lamp power | 30W |
| Circuit power | 33W |
| Ambient temperature (ta) | -20 … +50°C |
| Driver efficiency | up to 90% |
| Power factor | ≥95% |
| THD | <15% |
| Protection | IP20 |
| CRI | >80 |
| Lumen maintenance (L70) | >150K Hrs |
Flicker-free LED Drivers
Light flicker is a rapid change in brightness that can be invisible to the naked eye, but it can cause eye strain, headaches, and other problems.
Flicker of LED lights is primarily determined by the frequency of the mains supply. For mains frequency of 50/60 Hz, the potential flicker frequency is 100/120 Hz. The flicker is caused by rectifying AC power, and it can be worse with power factor correction.
Our LED drivers introduce second stage DC to DC conversion, which completely eliminates light flicker. This results in high power factor together with flicker-less LED output. This makes them ideal for use in applications where flicker can be a problem, such as offices, schools, and hospitals.
%
Power Factor
%
THD
Years Warranty
Hours of Life
Active Power Factor Correction
LED Drivers
- HLT Flicker-Free Drivers are flicker-free constant current driver for non-dimming applications. The drivers are characterised by very high reliability and performance.
- For dimming applications, HLT 1-10 V Dimming Drivers can be selected. The drivers support industrial standard 1-10V dimming interface.
- To have emergency lighting function, HEL emergency lighting units are used for both AC and DC battery supplies. Five steps dimming is provided via the infrared remote controller. DMX-512 dimming driver is also available for the downlight.
Dimensions
Compliances
EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)
EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules
EN 60929 AC and/or DC-supplied electronic control gear for tubular fluorescent lamps – Performance requirements
EN 60598-1 Luminaires. General requirements and tests
EN 60598-2-2 Luminaires. Particular requirements. Recessed luminaires
EN 60598-2-22 Luminaires. Particular requirements. Luminaires for emergency lighting
EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
EN 61000-3-2 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
EN 61000-3-3 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
EN 61547 Equipment for general lighting purposes. EMC immunity requirements
FSD Circular Letter No. 5/2021: PPA-104(A) 5th Rev Fire Safety Standards for Emergency Lighting
Ordering Information
| Model | CCT (K) |
Lumen (lm) |
Efficacy (lm/W) |
LED Driver |
Dimensions L x W x H (mm) |
|---|---|---|---|---|---|
| HLP-595-595-30-830F | 3000 | 3000 | 100 | HLT-700-42F | 595 x 595 x 30 |
| HLP-595-595-30-840F | 4000 | 3000 | 100 | HLT-700-42F | 595 x 595 x 30 |
| HLP-595-595-30-865F | 6500 | 3000 | 100 | HLT-700-42F | 595 x 595 x 30 |
| HLP-603-603-30-830F | 3000 | 3000 | 100 | HLT-700-42F | 603 x 603 x 30 |
| HLP-603-603-30-840F | 4000 | 3000 | 100 | HLT-700-42F | 603 x 603 x 30 |
| HLP-603-603-30-865F | 6500 | 3000 | 100 | HLT-700-42F | 603 x 603 x 30 |
| Model | CCT (K) |
Lumen (lm) |
Efficacy (lm/W) |
LED Driver |
Dimensions L x W x H (mm) |
|---|---|---|---|---|---|
| HLP-595-595-30-830A | 3000 | 3000 | 100 | HLT-700-42A | 595 x 595 x 30 |
| HLP-595-595-30-840A | 4000 | 3000 | 100 | HLT-700-42A | 595 x 595 x 30 |
| HLP-595-595-30-865A | 6500 | 3000 | 100 | HLT-700-42A | 595 x 595 x 30 |
| HLP-603-603-30-830A | 3000 | 3000 | 100 | HLT-700-42A | 603 x 603 x 30 |
| HLP-603-603-30-840A | 4000 | 3000 | 100 | HLT-700-42A | 603 x 603 x 30 |
| HLP-603-603-30-865A | 6500 | 3000 | 100 | HLT-700-42A | 603 x 603 x 30 |
| Model | CCT (K) |
Lumen (lm) |
Efficacy (lm/W) |
LED Driver |
Dimensions L x W x H (mm) |
|---|---|---|---|---|---|
| HLP-595-595-30-830E※ | 3000 | 3000 | 100 | HEL-700-42F | 595 x 595 x 30 |
| HLP-595-595-30-840E※ | 4000 | 3000 | 100 | HEL-700-42F | 595 x 595 x 30 |
| HLP-595-595-30-865E※ | 6500 | 3000 | 100 | HEL-700-42F | 595 x 595 x 30 |
| HLP-603-603-30-830E※ | 3000 | 3000 | 100 | HEL-700-42F | 603 x 603 x 30 |
| HLP-603-603-30-840E※ | 4000 | 3000 | 100 | HEL-700-42F | 603 x 603 x 30 |
| HLP-603-603-30-865E※ | 6500 | 3000 | 100 | HEL-700-42F | 603 x 603 x 30 |
※ Use suffix “2” or “3” for 2-hr or 3-hr emergency lighting option
