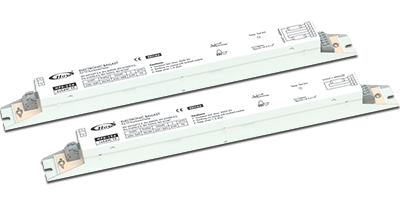

HPX T5 HO ELECTRONIC BALLASTS
![](https://hoye.com/wp-content/uploads/2015/07/HPX-HEHOTTC.png)
Features
- Programmed start
- Enhanced filament heating cut off technology
- Lamp power stabilization and anti-striation control for eliminating temperature effect
- Active power factor correction
- Constant light output; independent of mains voltage (156-265VAC)
- Compatible with infrared control systems
- Energy efficiency index (EEI) = A2
- Over-voltage protection for 320VAC, 1 hour
- Ballast over-current protection
- Defective lamp and EOL protections
- Automatic restart by lamp exchange
- No shutdown delay for fault reset
Electrical Characteristics
Rated supply voltage | 220 VAC ±10% |
Supply frequency | 50-60 Hz |
Preheat time | 0.8 Sec |
Lumen factor | 100% |
Lamp current crest factor | < 1.5 |
Ballast operating frequency | >42 KHz |
Operation life | 90,000 Hrs |
Lamp switching cycles | 200,000 |
Ambient temperature (ta) | -20 … +50°C |
%
Power Factor
%
THD
Years Warranty
Hours of Life
![](https://hoye.com/wp-content/uploads/2015/07/EB-Active-PFC.png)
Active Power Factor Correction
With the internal active harmonic filter, power factor of Hoye electronic ballasts is higher than 98% and total harmonic distortion is reduced to less than 10%, which is far beyond the limits of IEC 61000-3-2.
Electromagnetic Interference
The electromagnetic interference of Hoye electronic ballasts is further suppressed with the improved circuit design technologies. EMC performance is superior to most other products in the market.
![](https://hoye.com/wp-content/uploads/2015/07/EB-EMC.png)
![](https://hoye.com/wp-content/uploads/2015/07/EB-Input-Regulation.png)
Input Regulation
With the internal voltage regulation circuit, the luminous flux is unaffected by mains voltage. It provides a comfortable and stable light source for the environment.

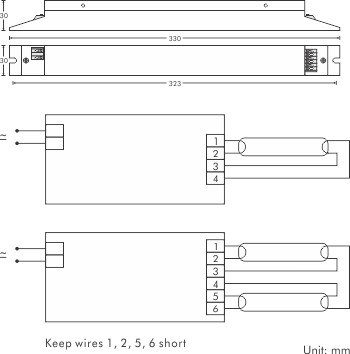

Dimensions & Wiring
![](https://hoye.com/wp-content/uploads/2015/07/HPX-Dimensions.png)
![](https://hoye.com/wp-content/uploads/2015/07/assessment-icon-ffcabac7ba68e5fc8f7e0a514921b689.png)
Compliances
EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)
EN 61347-2-3 Lamp control gear – Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic control gear for fluorescent lamps
EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
EN 61000-3-2 Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
EN 61000-3-3 Electromagnetic compatibility (EMC) – Part 3-3: Limits – Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
EN 61547 Equipment for general lighting purposes. EMC immunity requirements
Product Models
Model | Lamp Type |
Circuit Power (W) |
Lamp Power (W) |
PF (%) |
THD (%) |
tc (°C) |
Weight (g) |
---|---|---|---|---|---|---|---|
HPX-124 | 1x24W | 25.0 | 1×22.5 | 98 | 7.0 | 65 | 270 |
HPX-139 | 1x39W | 42.0 | 1×38.0 | 98 | 6.0 | 65 | 275 |
HPX-149 | 1x49W | 53.5 | 1×49.3 | 99 | 6.0 | 65 | 275 |
HPX-154 | 1x54W | 58.0 | 1×53.8 | 99 | 6.0 | 70 | 275 |
HPX-180 | 1x80W | 85.0 | 1×80.0 | 99 | 6.0 | 70 | 305 |
HPX-224 | 2x24W | 49.0 | 2×22.5 | 98 | 6.0 | 65 | 290 |
HPX-239 | 2x39W | 82.0 | 2×38.0 | 99 | 6.0 | 70 | 310 |
HPX-249 | 2x49W | 106.0 | 2×49.3 | 99 | 6.0 | 75 | 310 |
HPX-254 | 2x54W | 116.0 | 2×53.8 | 99 | 6.0 | 75 | 310 |
