LED FLOOD LIGHTS

HFC 10W

Features

  • COB LED
  • LED life is 35K hours
  • Body made with aluminum, steel screws and ASA plastic
  • Cooper heat pipe with large heat sink at the back
  • Highly reflective reflector
  • High transparent tempered glass
  • High efficient power supply with open circuit, overload, over-voltage and over temperature protections

Characteristics

Rated supply voltage 220-240 VAC ±10%
Supply frequency 50/60Hz
Ambient temperature (ta) -10 … +50°C
Power factor >95%
Current THD <15%
LED power 10W
Operating humidity 10-90%
IP Rating IP65
CRI 80
Beam angle 100°
Lumen maintenance (L70) >35K Hrs

%

Power Factor

%

THD

Years Warranty

Hours of LED Life

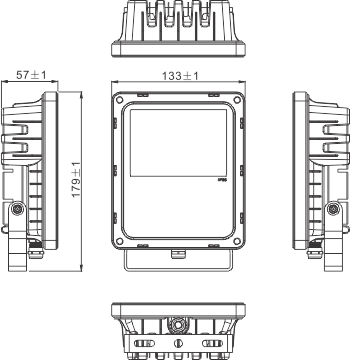

Dimensions

Compliances

EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)

EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules

EN 62384 DC or AC supplied electronic control gear for LED modules. Performance requirements

EN 60598-1 Luminaires. General requirements and tests

EN 60598-2-1 Luminaires. Particular requirements. Specification for fixed general purpose luminaires

EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

EN 61000-3-2 Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)

EN 61000-3-3 Electromagnetic compatibility (EMC) – Part 3-3: Limits – Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

EN 61547 Equipment for general lighting purposes. EMC immunity requirements

Product Models

Model CCT
(K)
Lumen
(lm)
HFC-10-830C 3000 900
HFC-10-840C 4000 950
HFC-10-865C 6500 1000
