LED FLOOD LIGHTS
HFC 50W
Features
- COB LED
- LED life is 35K hours
- Body made with aluminum, steel screws and ASA plastic
- Cooper heat pipe with large heat sink at the back
- Highly reflective reflector
- High transparent tempered glass
- High efficient power supply with open circuit, overload, over-voltage and over temperature protections
Characteristics
| Rated supply voltage | 220-240 VAC ±10% |
| Supply frequency | 50/60Hz |
| Ambient temperature (ta) | -10 … +50°C |
| Power factor | >95% |
| Current THD | <15% |
| LED power | 50W |
| Operating humidity | 10-90% |
| IP Rating | IP65 |
| CRI | 80 |
| Beam angle | 100° |
| Lumen maintenance (L70) | >35K Hrs |
%
Power Factor
%
THD
Years Warranty
Hours of LED Life

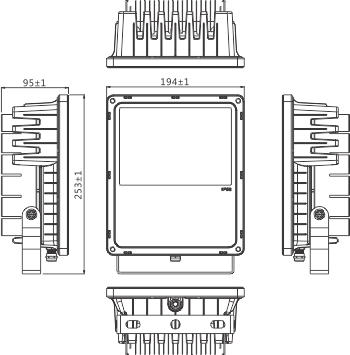

Dimensions
Compliances
EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)
EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules
EN 62384 DC or AC supplied electronic control gear for LED modules. Performance requirements
EN 60598-1 Luminaires. General requirements and tests
EN 60598-2-1 Luminaires. Particular requirements. Specification for fixed general purpose luminaires
EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
EN 61000-3-2 Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
EN 61000-3-3 Electromagnetic compatibility (EMC) – Part 3-3: Limits – Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
EN 61547 Equipment for general lighting purposes. EMC immunity requirements
Product Models
| Model | CCT (K) |
Lumen (lm) |
|---|---|---|
| HFC-50-830C | 3000 | 4400 |
| HFC-50-840C | 4000 | 4700 |
| HFC-50-865C | 6500 | 5000 |
