LED SPOTLIGHTS

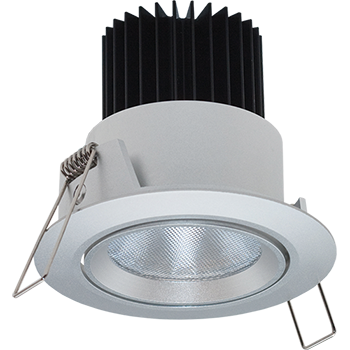

HLD 6.5W TILT

Features

  • High luminous efficacy COB LED from Citizen
  • With an external constant current transformer
  • Low temperature rise
  • LED with 50K hours life at L70, with IES LM-80-08 certified
  • Options for CRI higher than 80, 90 and 97
  • High number switching cycles
  • System efficacy up to 88 lm/W
  • Suitable for emergency lighting kit
  • Anode oxide aluminum body
  • No ultraviolet light emission
  • Complies with RoHS directive
  • Dimmable with optional 1-10V or DMX-512 drivers

Characteristics

Driver supply voltage 220-240 VAC ±10%
Lamp power 6.5W
Circuit power 8.5W
LED supply voltage 37.5V DC (max)
LED supply current 180mA
Ambient temperature (ta) -10 … +50°C
Power factor 95%
THD <15%
Ceiling cut-out 85mm
Trim diameter 100mm
CRI >80, >90, 97
Beam angle 36°
Lumen maintenance (L70) >50K Hrs

Data tested with standard LED Driver

%

Power Factor

%

THD

Years Warranty

Hours of LED Life

Lumen / Watt

LED Chips

The Citizen LEDs are characterised by very high efficacy and colour rendering index and durability. Options for Ra 90 (min.) and Ra 97 (typical) are available.

The chromaticity range is narrower and within MacAdam 3-step ellipse from the chromaticity centers (ANSI CCT standard).

They are IES lM-80-2008 (Measuring Lumen Maintenance of LED Light Sources) certified for the best reliability and performance.

LED Drivers

  • HLT Drivers are constant current driver for non-dimming applications. The drivers are characterised by very high reliability and performance.
  • HLT Flicker-Free Drivers are flicker-free constant current driver for non-dimming applications. The drivers are characterised by very high reliability and performance.
  • For dimming applications, HLT 1-10 V Dimming Drivers can be selected. The drivers support industrial standard 1-10V dimming interface.
  • To have emergency lighting function,  HEL emergency lighting units are used for both AC and DC battery supplies. Five steps dimming is provided via the infrared remote controller. DMX-512 dimming driver is also available for the downlight.

Compliances

EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)

EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules

EN 62384 DC or AC supplied electronic control gear for LED modules. Performance requirements

EN 60598-1 Luminaires. General requirements and tests

EN 60598-2-2 Luminaires. Particular requirements. Recessed luminaires

EN 60598-2-22 Luminaires. Particular requirements. Luminaires for emergency lighting

EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

EN 61000-3-2 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)

EN 61000-3-3 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

EN 61547 Equipment for general lighting purposes. EMC immunity requirements

FSD Circular Letter No. 1/2006: PPA-104(A) 4th Rev Fire Safety Standards for Emergency Lighting

Ordering Information

Model CCT
(K)
CRI Lumen
(lm)
Efficacy
(lm/W)
LED
Driver
HLD-65T36-827 2700 >80 680 80 HLT-180-42
HLD-65T36-830 3000 >80 680 80 HLT-180-42
HLD-65T36-840 4000 >80 750 88 HLT-180-42
HLD-65T36-865 6500 >80 750 88 HLT-180-42

👉 Non-dimming LED Driver



Model CCT
(K)
CRI Lumen
(lm)
Efficacy
(lm/W)
LED
Driver
HLD-65T36-827 2700 >80 680 80 HLT-180-42F
HLD-65T36-830 3000 >80 680 80 HLT-180-42F
HLD-65T36-840 4000 >80 750 88 HLT-180-42F
HLD-65T36-865 6500 >80 750 88 HLT-180-42F

👉 Flicker-Free LED Driver



Model CCT
(K)
CRI Lumen
(lm)
Efficacy
(lm/W)
LED
Driver
HLD-65T36-827A 2700 >80 680 80 HLT-180-42A
HLD-65T36-830A 3000 >80 680 80 HLT-180-42A
HLD-65T36-840A 4000 >80 750 88 HLT-180-42A
HLD-65T36-865A 6500 >80 750 88 HLT-180-42A

👉 1-10V Diming LED Driver



Model CCT
(K)
CRI Lumen
(lm)
Efficacy
(lm/W)
LED
Driver
HLD-65T36-827E※ 2700 >80 680 80 HEL-180-42
HLD-65T36-830E※ 3000 >80 680 80 HEL-180-42
HLD-65T36-840E※ 4000 >80 750 88 HEL-180-42
HLD-65T36-865E※ 6500 >80 750 88 HEL-180-42

※ Use suffix “2” or “3” for 2-hr or 3-hr emergency lighting option

👉 HEL Series LED Emergency Lighting Units
