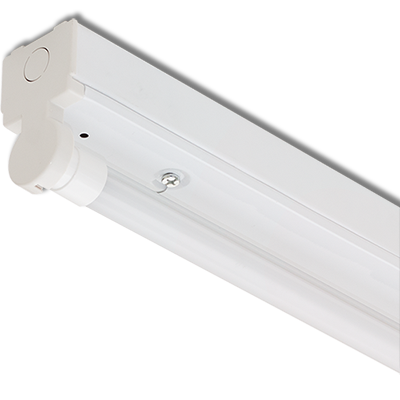

LED BATTENS
HFB T8 G13 BASE
Features
- Suitable for HLL or HLI T8 G13 base LED lamps
- LED drivers included for HLL T8 LED lamps
- With optional reflectors and diffusers
- Various choices for different series of LED lamps
- Available in single and double lamp versions
- Option of 1-10V dimming
Electrical Characteristics
See details information below:
Constructions
| Body | White powered coated sheet body |
| Lamp holder | BJB, flame retardant grade |
| Wires | UL approved, 105°C |
| Terminal block | BJB, flame retardant grade |
LED Drivers
HLT Drivers are used for non-dimming applications. The drivers are characterised by very high reliability and performance.
For dimming applications, HLT 1-10 V Dimming Drivers can be selected. The drivers support industrial standard 1-10V dimming interface.
Dimensions
Compliances
EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)
EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules
EN 62384 DC or AC supplied electronic control gear for LED modules. Performance requirements
EN 60598-1 Luminaires. General requirements and tests
EN 60598-2-1 Luminaires. Particular requirements. Specification for fixed general purpose luminaires
EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
EN 61000-3-2 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
EN 61000-3-3 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
EN 61547 Equipment for general lighting purposes. EMC immunity requirements
Ordering Information
| Model | Lamp Type |
Lamp Count |
Length (mm) |
|---|---|---|---|
| HFB#-12L | T8 G13 600mm | 1 | 610 |
| HFB#-13L | T8 G13 900mm | 1 | 912 |
| HFB#-14L | T8 G13 1200mm | 1 | 1220 |
| HFB#-15L | T8 G13 1500mm | 1 | 1525 |
| HFB#-22L | T8 G13 600mm | 2 | 1220 |
| HFB#-23L | T8 G13 900mm | 2 | 912 |
| HFB#-24L | T8 G13 1200mm | 2 | 1220 |
| HFB#-25L | T8 G13 1500mm | 2 | 1525 |
※ Omit “#” for standard, replace with “R” for adding reflectors, replace with “D” for adding diffusers
※ Add suffix “F” for optional fused terminal blocks
| Model | Lamp Type |
Lamp Count |
Length (mm) |
|---|---|---|---|
| HFB#-12LA | T8 G13 600mm | 1 | 610 |
| HFB#-13LA | T8 G13 900mm | 1 | 912 |
| HFB#-14LA | T8 G13 1200mm | 1 | 1220 |
| HFB#-15LA | T8 G13 1500mm | 1 | 1525 |
| HFB#-22LA | T8 G13 600mm | 2 | 1220 |
| HFB#-23LA | T8 G13 900mm | 2 | 912 |
| HFB#-24LA | T8 G13 1200mm | 2 | 1220 |
| HFB#-25LA | T8 G13 1500mm | 2 | 1525 |
※ Omit “#” for standard, replace with “R” for adding reflectors, replace with “D” for adding diffusers
※ Add suffix “F” for optional fused terminal blocks
| Model | Lamp Type |
Lamp Count |
Length (mm) |
|---|---|---|---|
| HFB#-12I | T8 G13 600mm | 1 | 610 |
| HFB#-13I | T8 G13 900mm | 1 | 912 |
| HFB#-14I | T8 G13 1200mm | 1 | 1220 |
| HFB#-15I | T8 G13 1500mm | 1 | 1525 |
| HFB#-22I | T8 G13 600mm | 2 | 1220 |
| HFB#-23I | T8 G13 900mm | 2 | 912 |
| HFB#-24I | T8 G13 1200mm | 2 | 1220 |
| HFB#-25I | T8 G13 1500mm | 2 | 1525 |
※ Omit “#” for standard, replace with “R” for adding reflectors, replace with “D” for adding diffusers
※ Add suffix “F” for optional fused terminal blocks
